Fox's lightweight fork platform for the XC-inspired rider.
- Lightweight design to get you up every mountain
- Lockout for increased efficiency
- FIT4 three position damper for improved control
- Factory Series models feature Genuine Kashima Coat
Starting at 2.98 pounds, the 32 Step-Cast (SC) fork is Fox's lightest cross-country fork ever.
Optimized for 100 mm of travel, the Step-Cast lower leg design and narrow crown spacing save weight while the 32 mm upper tubes maintain FOX ride quality.
FIT4 - FOX Isolated Technology
Now in its fourth generation, the patented FIT4 (FOX Isolated Technology) closed cartridge system provides three on-the-fly compression damping positions—Open, Medium, and Firm—to adapt to varying trail conditions. Factory Series forks feature an additional 22 clicks of low-speed compression adjust in the Open mode, allowing riders to fine-tune their exact damping preferences.
The FIT4 cartridge damper was redesigned based on Fox's award-winning HSC/LSC damper, resulting in a much higher performing damper across all forks. This year, the FIT4 damper received an updated tune that provides more sensitivity while maintaining support.
Fork Rake: 44mm
Air Spring Models: FLOAT SC
Damper: 3Pos-Adj FIT4

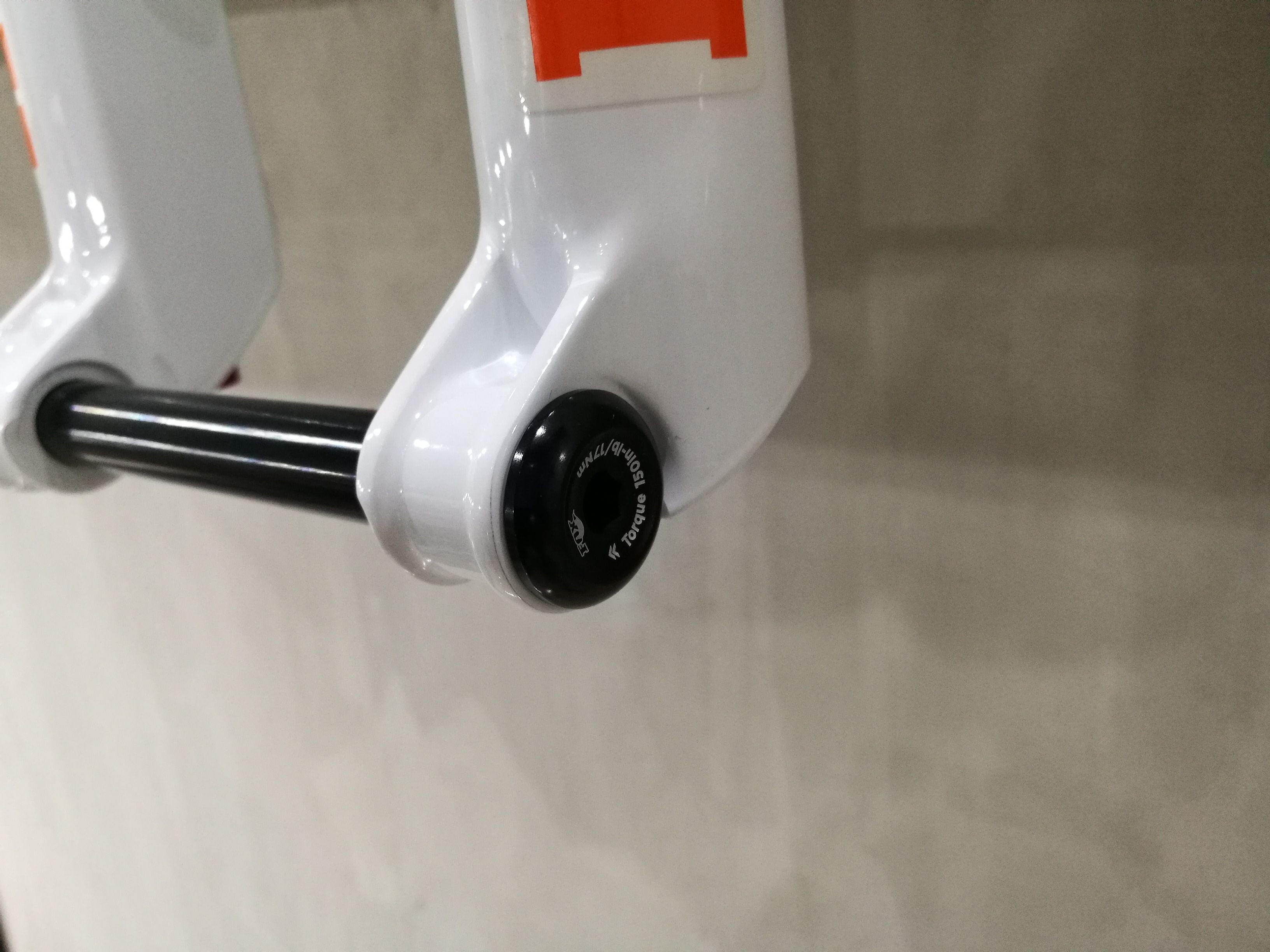

Axle: KABOLT 100
Upper Tube Finish: Kashima
Steerer Options: 1.5 Tapered
Model Number: 910-20-039
